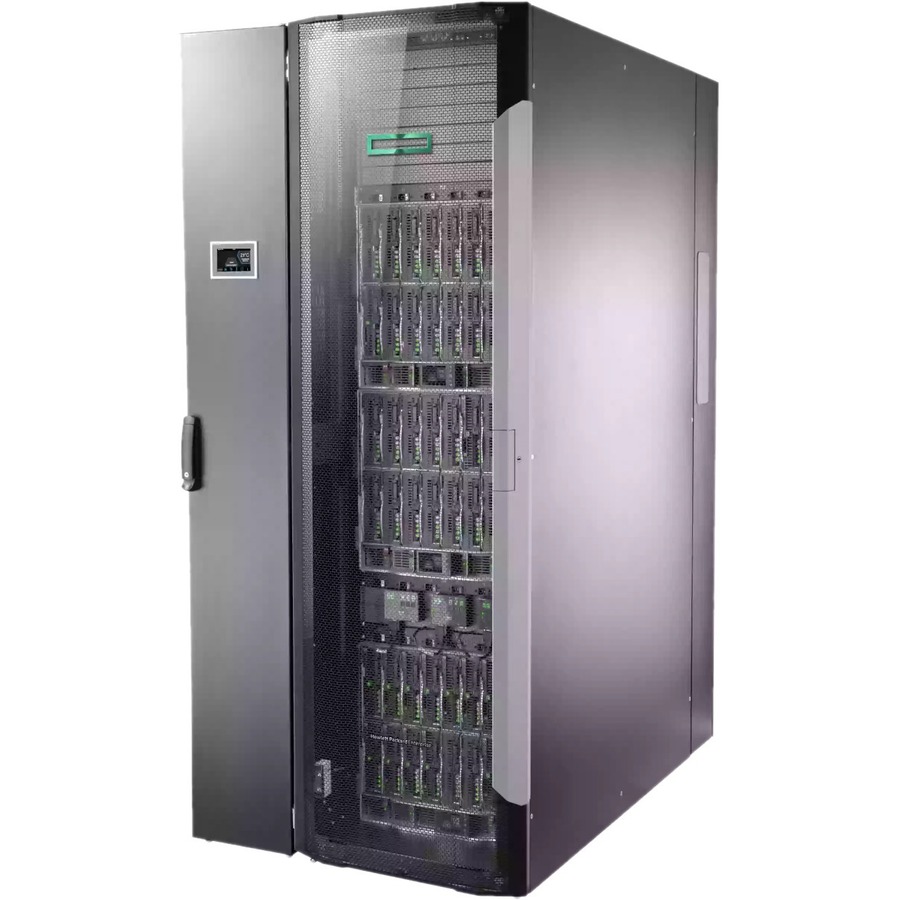

HPE ARCS v2 Cooling Unit Rack

Key Features l High-performance Cooling at the Rack Level

The HPE Modular Cooling System 200 supports a full rack of density-optimized or blade servers, which at peak configuration may require a power load in excess of 35 kW, allowing for additional density per rack.

Full front and rear rack containment provides chilled air along the full height of the rack, reducing hot spots.

The environment within the HPE Modular Cooling System 200 can be controlled independently of ambient data center conditions, allowing user-adjustable cold-aisle set points and the ability to use warmer facility water.

Engineered for Reliability and Ease of Ownership

The HPE Modular Cooling System 200 includes hot-swappable fans that can be replaced while the unit is operating, allowing for easier serviceability.

A full-featured environment manager is accessible locally via the HPE Modular Cooling System 200 touchscreen display or remotely using a Web browser, allowing data center managers to program temperature, specific usage times, in addition to other commands.

The integration between the HPE Modular Cooling System 200 and HPE Systems Insight Manager (SIM) aids in increasing system uptime and health.

By supporting redundant power, it can automatically detect power failures and switch to an alternate power source, therefore reducing system downtimes.

Versatility for a Wide Range of Options

The HPE Modular Cooling System 200 provides comprehensive platform support, including support for servers and storage products from Hewlett Packard Enterprise, as well as third-party standard rack servers.

Built to support up to 2,000 pounds of IT equipment, the HPE Modular Cooling System 200 can be fully configured, cabled and tested at the Hewlett Packard Enterprise factory.
