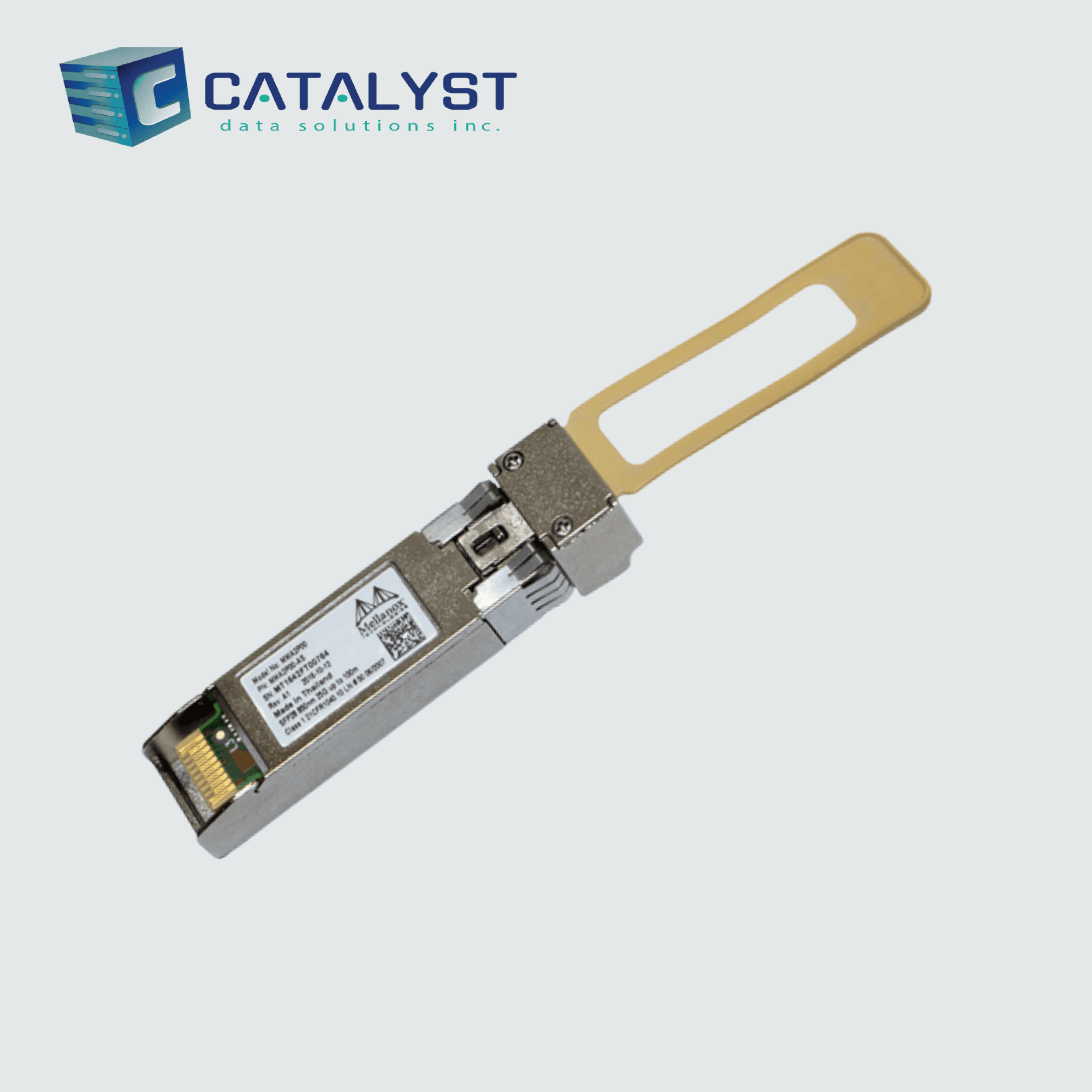

Mellanox MMA2P00 25GBASE Transceiver 100m MMF Short-Reach

The Mellanox MMA2P00 is a premium SFP28 optical transceiver designed for 25 Gigabit Ethernet over multimode fiber. Operating at a nominal wavelength of 850 nm with a duplex LC connector, it supports link lengths up to 100 m over OM4 fiber and is fully compliant with SFF-8402 specifications. It combines high performance with low power consumption, providing an ideal short-reach solution for modern data-center and enterprise networks. Furthermore, the hot-pluggable form factor allows for rapid upgrades or replacements with minimal downtime.

Whether you are deploying new high-speed links or upgrading existing ones, the MMA2P00 delivers reliable, high-density connectivity with cost-effective design.

Key Features & Benefits (Mellanox MMA2P00 AS)

Features:

• 25 Gbps SFP28 form factor
• 850 nm VCSEL transmitter and PIN receiver for multimode fibre
• Duplex LC connector
• Reach up to ~100 m on OM4 fibre (typical)
• Hot-swappable design
• Compliant with SFF-8402, IEEE 802.3by standards
• Low-power consumption for efficient operations

Benefits:

• High-density performance: Enables 25G links in space-constrained environments.
• Cost-sensitive upgrade path: Allows reuse of multimode fibre infrastructure.
• Quick deployment: Hot-plug capability reduces installation effort and downtime.
• Reliability: Backed by full compliance and tested interoperability for stable operations.
• Energy efficient: Minimises power draw and cooling overhead in dense racks.
• Scalable: Prepares your network for growth while supporting current 25G needs.
